Summary:

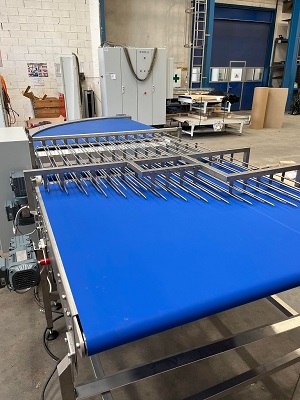

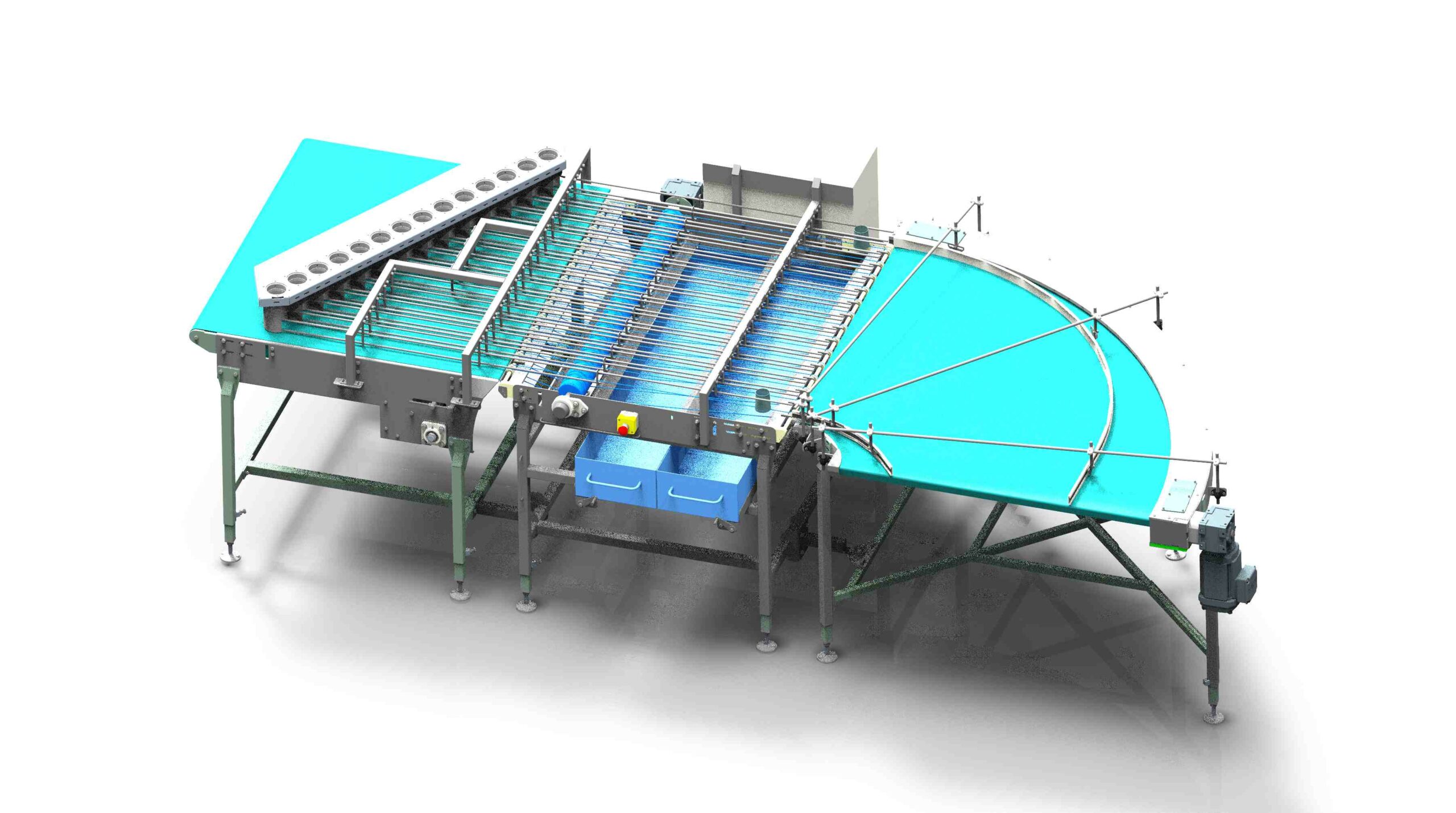

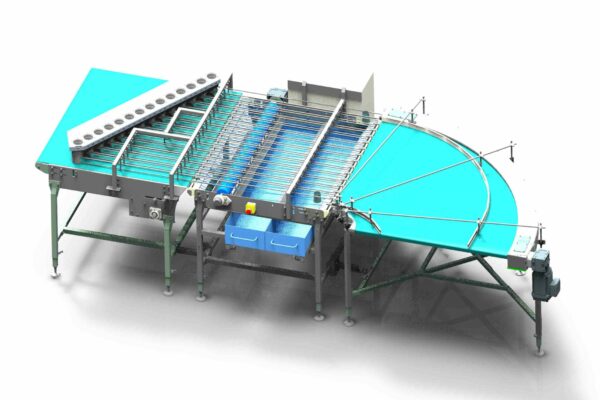

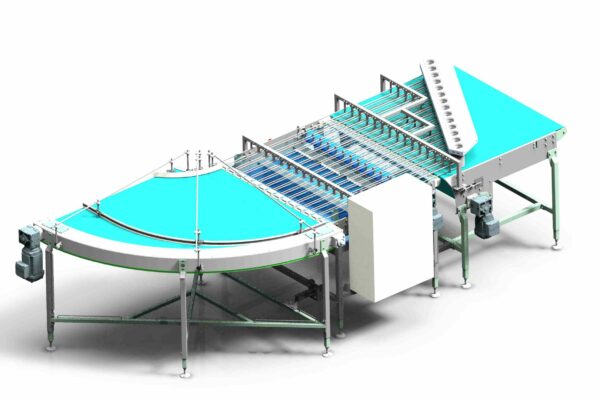

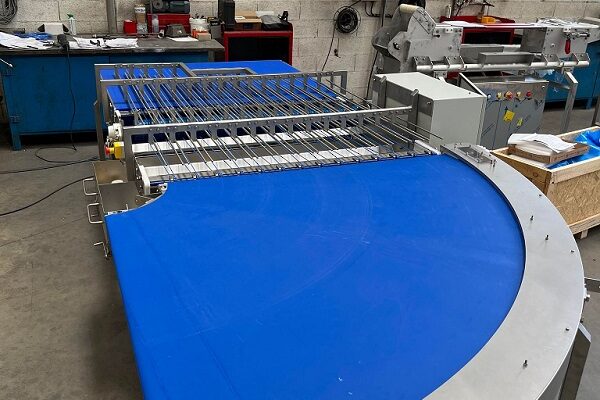

This conveyor system was created to transport yoghurt pots and remove incorrectly positioned pots.
The conveyors run continuously and the yoghurt pots positioned incorrectly (lying down) pass between the belts of the CV2 conveyor.
Technical description:
- This conveyor system consists of:
- Three driven-belt conveyors
- One complete electrical cabinet
Technical data:
- Products transported: Yoghurt pots
- Weight of transported product: 15 g
- Size of transported product: Ø 60 mm and height 75 mm
- Transport direction: One-way
- Power voltage: 400 V three-phase
- Environment: Dry
